LHD450

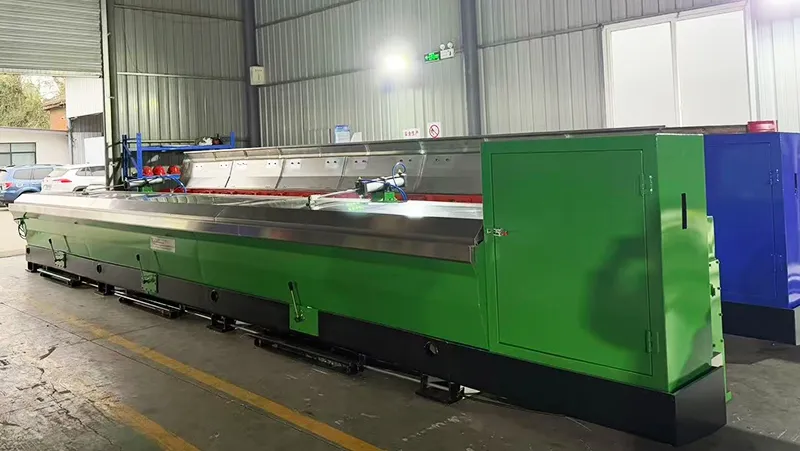

Copper Rod Breakdown Machine
Copper rod breakdown machines reduce Ø8 mm copper rods into Ø1.2–4.5 mm single wires for wire and cable production. As the copper rod moves through the drawing dies, its diameter becomes smaller and more controlled. The same drawing process also helps keep the wire round and the surface clean enough for later cable production. The finished wire is suitable for later stranding, bunching, insulation, or other conductor manufacturing steps.
Technical Specifications
| Model | Number of Drawing Dies | Inlet Rod Diameter (mm) | Outlet Wire Diameter (mm) | Max. Drawing Speed (m/s) |
| 9 | Ø8 | 2.1–4.0 | 20 | |
| 11 | Ø8 | 1.7–4.5 | 22 | |
| 13 | Ø8 | 1.2–4.5 | 25 |
Machine Configuration
Standard Configuration
- Rotary Two-Head Pay-Off Stand

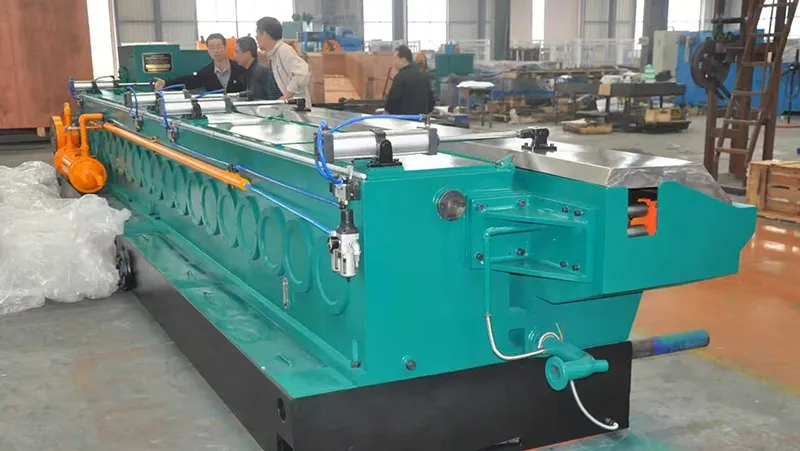

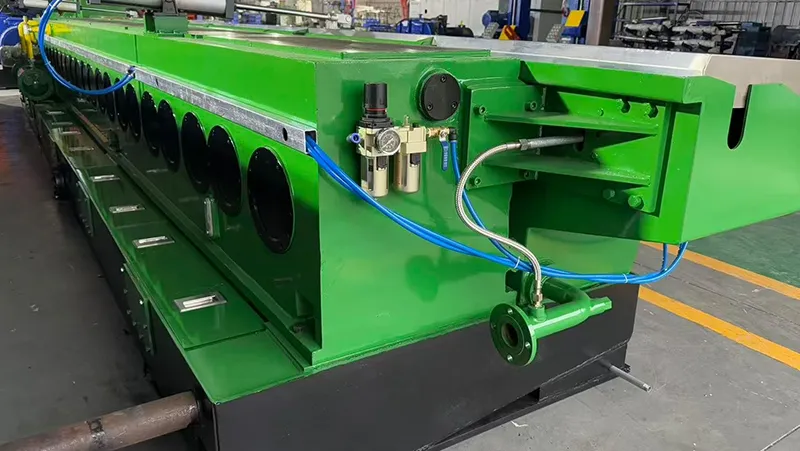

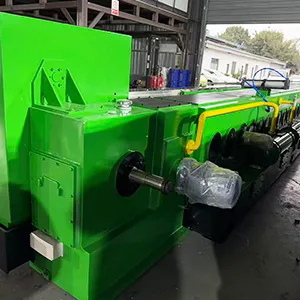

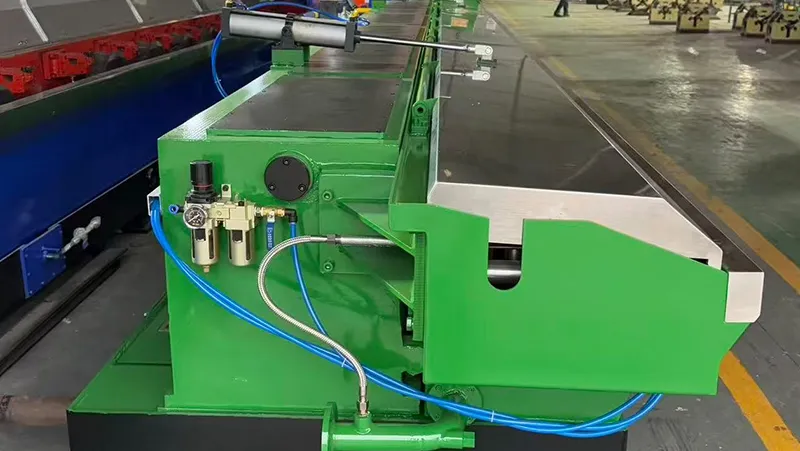

- Wire Drawing Main Unit

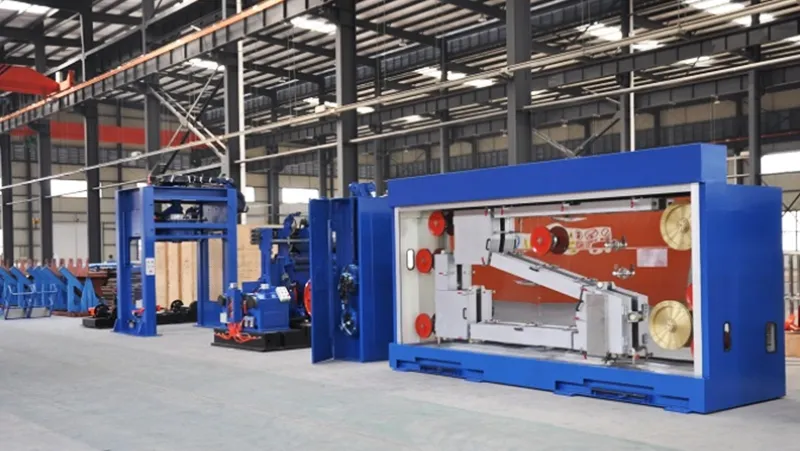

- Wire Accumulator
- Annealing Unit
- Pneumatic Dual-Reel Take-Up Unit
- Wire Pointing and Die Threading Unit
- Siemens PLC
- DC Speed Control System
- Touchscreen HMI
- Electrical Control Cabinet
- Operator Console
- Drawing Die Cooling and Lubrication System
- Gear Transmission Cooling and Lubrication System
- Annealing Unit Cooling System
- Inclined Oil Collection Base
Optional Equipment
- Coil-Type Take-Up Machine
Features
- Copper wire leaves the annealing and take-up section at below 50°C, with no surface oxidation, stable wire diameter, and elongation that meets the required standard.

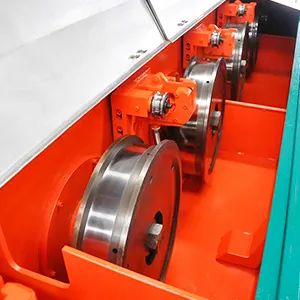

- Aluminum alloy guide wheels are used in the annealing unit and wire accumulator. Their ceramic-coated grooves offer better wear resistance and a longer service life.
- The annealing unit works together with the fixed-speed wheel of the wire drawing main unit. Operators can switch between annealing and non-annealing modes, while the anti-reverse device supports safer operation.
- The pneumatic dual-reel take-up system reaches reel change speed quickly and allows reel change once the speed drops to 8–12 m/s, helping reduce downtime.
- During dual-reel take-up changeover, the wire leading-end diameter stays within a tight ±0.01 mm range, which helps reduce scrap wire.
- Maintenance access openings near the capstan shaft positions make the wire drawing oil tank easier to inspect, clean, and service.
- The wire accumulator uses a contactless potentiometer for stable adjustment, longer service life, and faster reel change response.
- The rotating-arm pay-off stand has two working positions, allowing rod feeding and rod connection without stopping the wire drawing machine.
- If abnormal rod pay-off occurs, the wire drawing machine stops automatically to prevent drawing faults or wire damage.
- The traversing frame uses a dual-support structure for smoother movement, and its reversing position can be adjusted electrically during production.
- Equipped with digital DC speed control, PLC control, measurement display, fault display, fault alarm, and automatic shutdown functions to help operators have better control over the wire drawing process.
Details
Deyang XDG is dedicated to the design and manufacture of cable and wire machinery, from metal rod continuous casting and rolling to wire drawing, stranding, cabling and extrusion. Beyond supplying wire and cable production equipment, we specialize in providing complete solutions to help global wire and cable manufacturers improve production efficiency and reliability. Our equipment including CCR lines, wire drawing machines, stranding machines, cabling machines as well as auxiliary equipment such as take-up units and cable packing machine is widely utilized in the production of power transmission cables, electrical conductors, communication cables, photovoltaic cables, and more.
