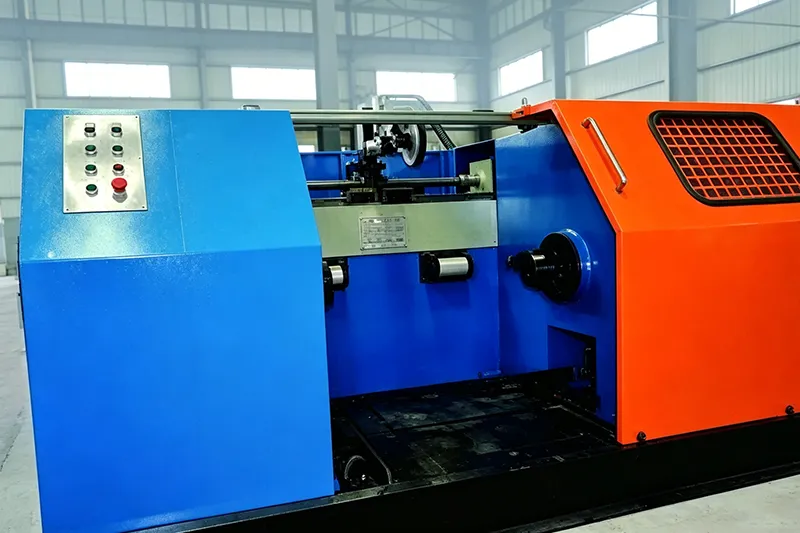

Horizontal Spooling Machine, Automatic Wire Spooler
The SXJ1000/590 horizontal spooling machine is designed for tightly and neatly winding wires, cables, and metal rods (such as copper and aluminum) onto spools during production. It prevents loose coils, tangling, or damage, ensuring safer handling, transport, and storage. The wire spooler is fully compatible with wire drawing lines and cable manufacturing workflows.
Technical Specifications
| Wire Diameter (mm) | ⌀1.8~⌀3.5 finished wire |
| Maximum Mechanical Speed (m/s | 25 |
| Spool Dimensions (mm) OD × ID × Inner Width | ⌀1000 × ⌀610 × 590 |
| Maximum Take-Up Weight (kg) | Approx. 2200 |
| Machine Dimensions (mm) | 2710 × 1850 × 1565 |
| Machine Net Weight (t) | Approx. 5 |
Features
- No separate reel required: Reduces operational costs and saves production space.
- Precision coil arrangement: Servo-controlled wire guidance and dynamically balanced spools ensure stable operation. Conical tight winding keeps wire orderly during take-up.
- Pneumatic control: Spool clamping, pushing, and braking are all air-operated. The pneumatic spool top pin allows convenient, clean operation, with an added locking mechanism for safety.
- Safe spool handling: Pneumatic wrenches are used for loading and unloading spools, providing secure and reliable lifting.
