Rigid Strander with Individual Drive
The individual drive rigid strander is designed for the non-back-twist stranding of copper conductors, aluminum conductors, and aluminum conductor steel-reinforced (ACSR) products. It can also be used for stranding insulated wires and conductor strands. When equipped with a compacting device, the stranding machine is capable of producing round, semi-round, and sector-shaped compacted copper and aluminum conductors for a wide range of power cable applications.
Technical Specifications
| Model | Single Wire Diameter (mm) | Stranded Conductor Diameter (mm) | Maximum Cage Speed (rpm) | Stranding Pitch (mm) |
| Copper: 1.5–4.5 Aluminum: 1.8–5.0 | 45 | 249 | 38~1100 | |
| 45 | 210 | 45~1100 | ||
| 55 | 210 | 45~1297 | ||
| Aluminum: 1.8–5.0 Alloy Wire (Equivalent Diameter): 2.8–6.0 | 45 | 169 | 40~1136 | |
| 45 | 210 | 45~1136 | ||
| 55 | 210 | 45~1340 |
Main Configuration
Standard Configuration
- FN1600 Shaft-Type Pay-Off Stand

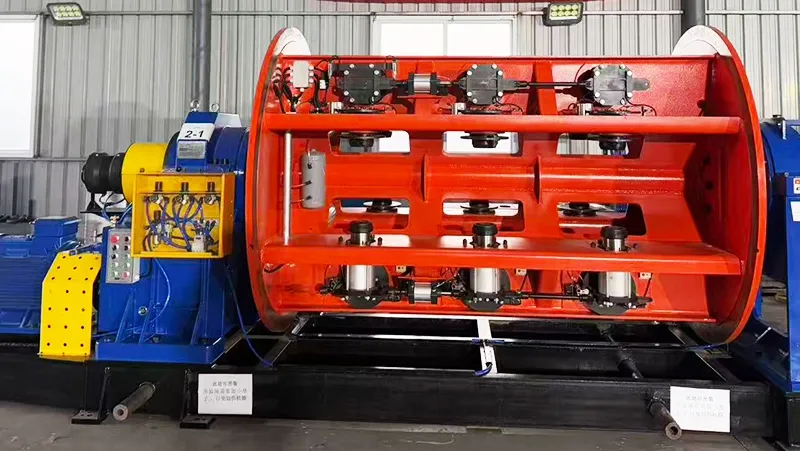

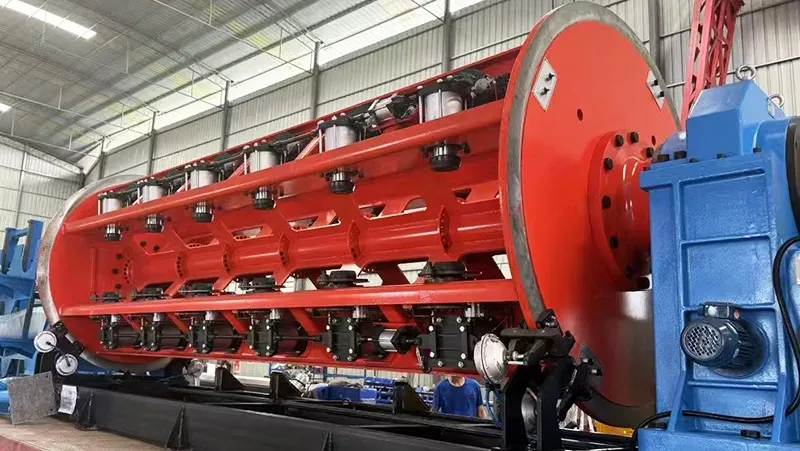

- Stranding Cage
- Integrated Reel Loading and Unloading System
- Adjustable Combining Die Stand with Compacting Unit
- Meter Counter
- Dual Active Natural Strand Separating Capstan System

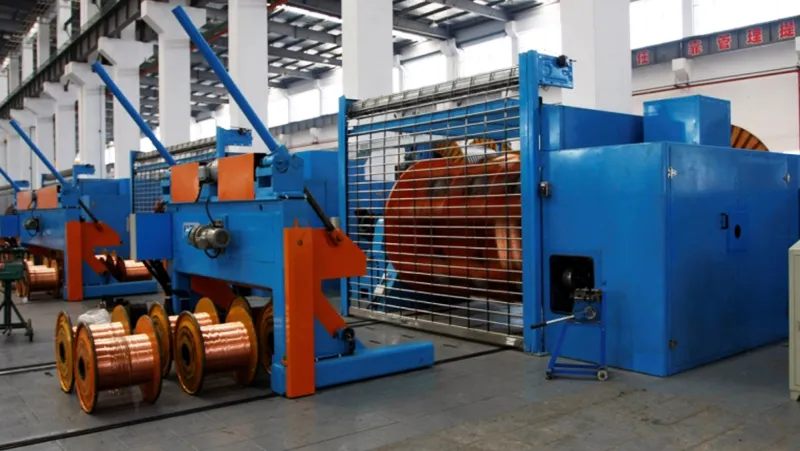

- Portal-Type Take-Up and Traversing System
- DC Speed Control System
- Electrical Control Cabinet and Operator Console
- Inline Push-Pull Safety Guard System
Optional Equipment
- PND630 Pay-Off Stand
- PND710 Pay-Off Stand
- Die Stand with Pre-Former (Ground Shaft Drive)
- Shaped Conductor Positioning Disc System
- Side Horizontal Integrated Reel Loading and Unloading System
- AC Variable Frequency Drive (VFD) Control System
- Motorized Rotating Safety Guard System
Features
- Each stranding cage and the capstan system are driven by independent motors, allowing individual speed adjustment for improved process control. The stranding cages are driven through synchronous belt transmission.
- Compatible with PND630 and PND710 reels, the stranding machine is equipped with an integrated side-loading reel handling system for convenient loading and unloading operations.

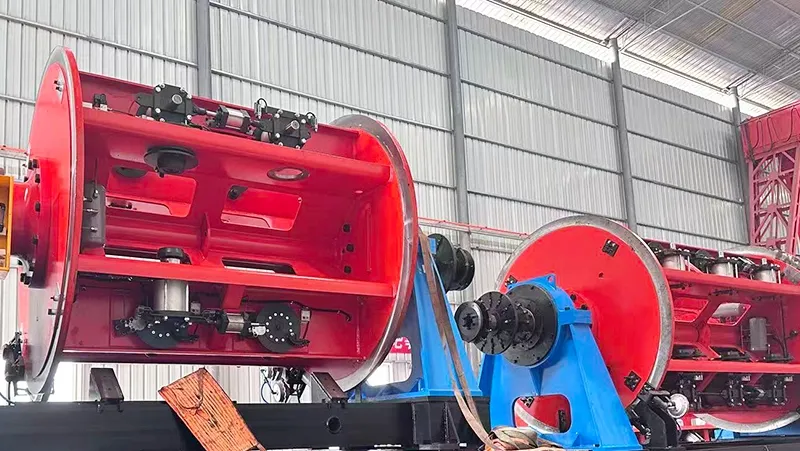

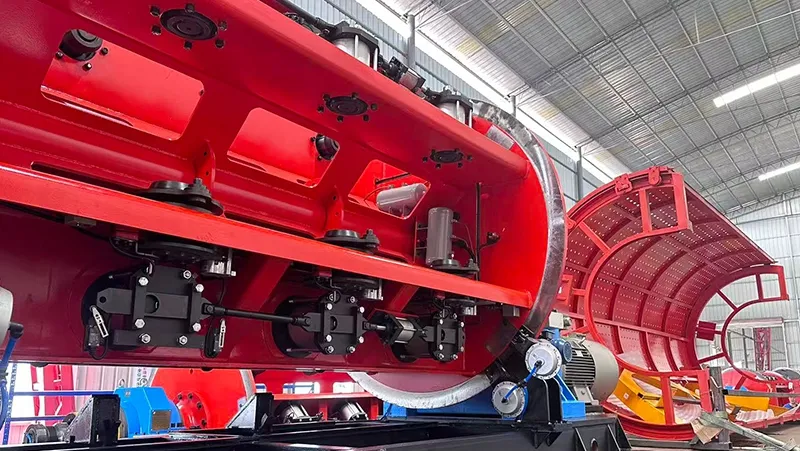

- Reels are evenly distributed around the stranding cage in four sections, providing easy access during reel changes. The rigid machine structure supports stable operation and high production speeds.
- Tension control inside the stranding cage combines mechanical, pneumatic (proportional valve), and ultrasonic control methods to maintain consistent strand quality throughout production.
- Equipped with a dual active strand separating and capstan system, reducing the risk of conductor surface damage during the stranding process.
- A wire break detection system automatically stops the machine immediately when a wire break occurs, helping protect product quality and minimize downtime.
- The strander adopts a fully digital DC speed control system and PLC-based intelligent control platform. Production data, operating status, measurements, alarms, and fault information are displayed through a user-friendly HMI for monitoring and management.
