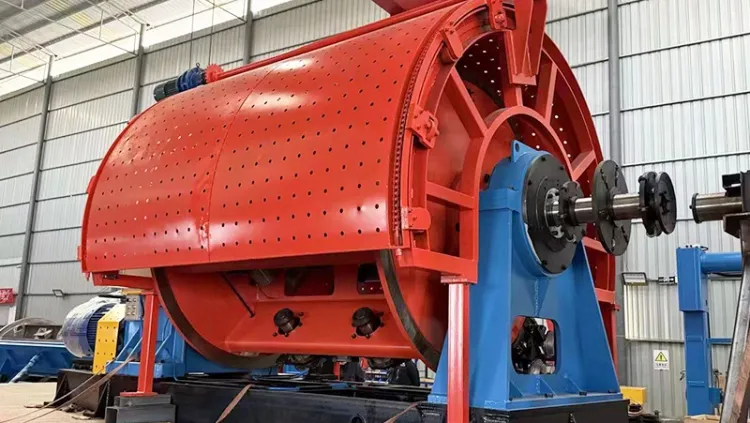

Rigid Stranding Machine

Rigid Stranding Machine
Contact Us

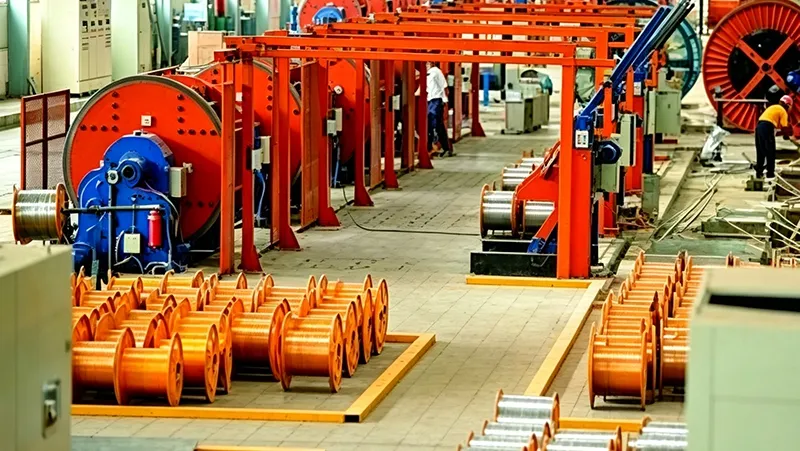

The rigid stranding machine is designed for the non-back-twist stranding of copper conductors, aluminum conductors, and aluminum conductor steel-reinforced (ACSR) products. It can also be used for the stranding of insulated conductors, conductor strands, and shaped wires, which is suitable for a wide range of conductor manufacturing applications.

Technical Specifications
JLK500 Series Rigid Stranding Machine
Model Single Wire Diameter (mm) Stranded Conductor Diameter (mm) Cage Speed (rpm) Stranding Pitch (mm)
JLK500/6+12 Copper: 1.5–4.5
Aluminum: 1.8–5.0 		25 190~68 35~761
JLK500/6+12+18 35 190~58 35~892
JLK500/12+18+24 45 162~49 41~1052
JLK630 Series Rigid Stranding Machine
Model Single Wire Diameter (mm) Stranded Conductor Diameter (mm) Cage Speed (rpm) Stranding Pitch (mm)
JLK630/6+12+18+24 Copper: 1.5–4.5
Aluminum: 1.8–5.0 		45 207~54 38~1104
JLK630/12+18+24 45 176~54 45~1104
JLK630Z/6+12+18 Copper: 1.5–4.5
Aluminum: 1.8–5.0 		35 207~64 38~930
JLK630Z/6+12+18+24 45 207~54 38~1104
JLK630Z/6+12+18+24+30 55 207~45 38~1324
JLK630Z/12+18+24 45 176~54 45~1104
JLK630Z/12+18+24+30 55 176~45 45~1324
JLK710 Series Rigid Stranding Machine
Model Single Wire Diameter (mm) Stranded Conductor Diameter (mm) Cage Speed (rpm) Stranding Pitch (mm)
JLK710×/6+12+18 Aluminum: 1.8–5.0
Alloy Wire (Equivalent Diameter): 2.8–6.0 		35 156~48 37~924
JLK710X/6+12+18+24 45 156~42 37~1041
JLK710X/12+18+24 45 132~42 44~1041
Machine Configuration

Standard Configuration

  • FN1600 Shaft-Type Pay-Off Stand
  • Stranding Cage
  • Single-Reel or Side-Loading Integrated Reel Loading and Unloading System
  • Adjustable Combining Die Stand with Compacting Unit
  • Main Reduction Gearbox and 36-Step Gearbox
  • Meter Counter
  • Dual Active Natural Strand Separating Capstan System
  • Shaft-Type Take-Up and Traversing Stand
  • DC Speed Control System
  • Electrical Control Cabinet and Operator Console
  • Inline Push-Pull Safety Guard System

Optional Equipment

  • PND500 Pay-Off Stand
  • PND630 Pay-Off Stand
  • Side Horizontal Integrated Reel Loading and Unloading System
  • Shaped Conductor Positioning Disc System
  • Portal-Type Take-Up and Traversing System
  • AC Variable Frequency Drive (VFD) Control System
  • Servo Motor Control System
  • Arc-Type Push-Pull Safety Guard System
  • Motorized Rotating Safety Guard System
Features
  • When equipped with a compacting unit, the stranding machine can produce round, semi-round, and sector-shaped compacted copper and aluminum conductors.
  • Available with single-reel loading or side-loading integrated reel handling systems, the rigid strander is compatible with PND500, PND630, and PND710 reels.

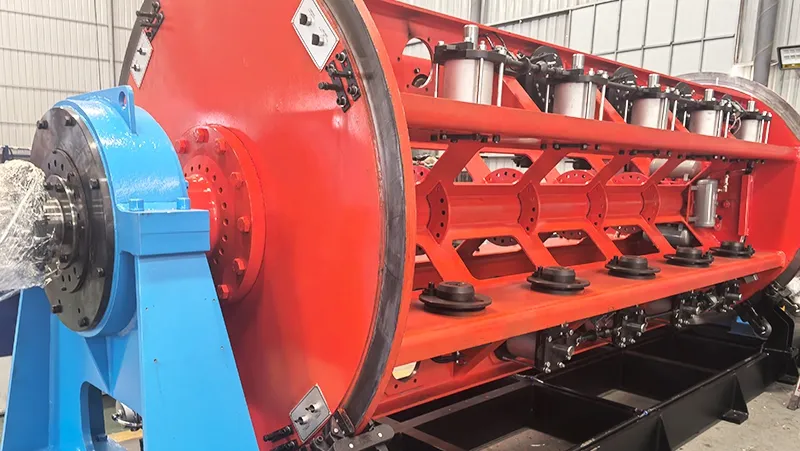

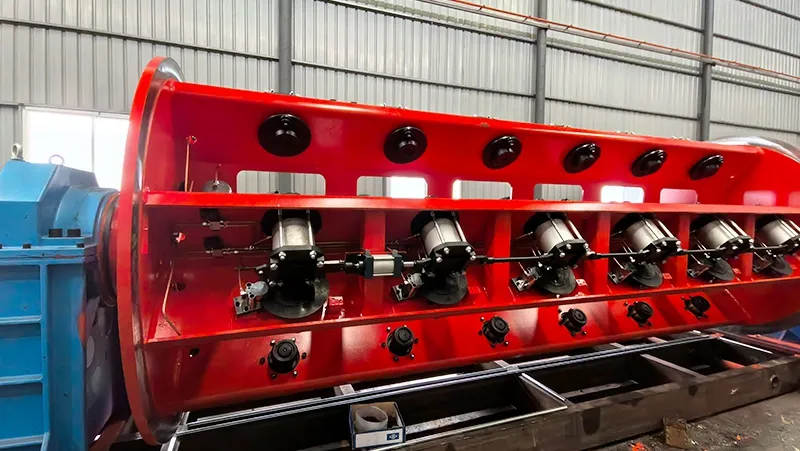

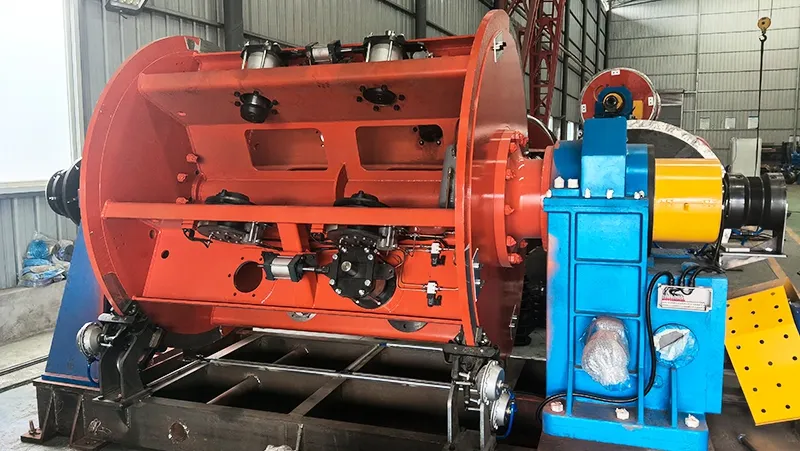

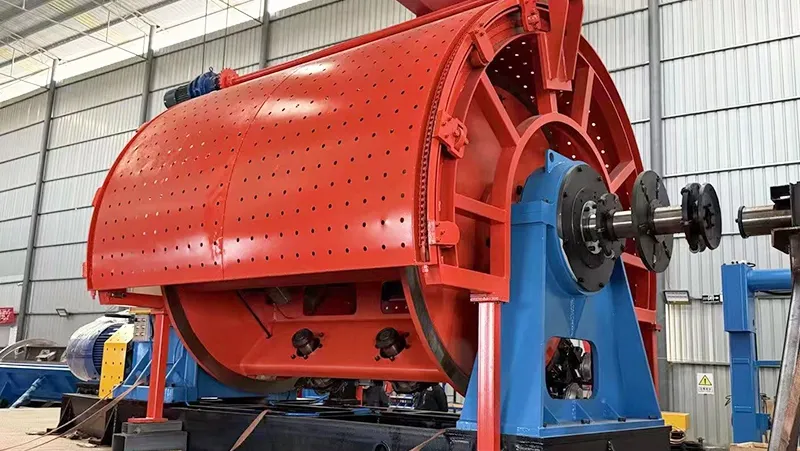

  • Reels are evenly arranged around the stranding cage in four sections, providing a rigid structure, reliable performance, and high operating speeds.
  • Equipped with a 36-step capstan gearbox and a dual active natural strand separating capstan system, reducing the risk of conductor surface damage during the stranding process.
  • Tension control inside the stranding cage can be configured with either a mechanical system or a combined mechanical, pneumatic (proportional valve), and ultrasonic control system to maintain stable strand quality.
  • A wire break detection system automatically stops the machine immediately when a wire break occurs, helping protect product quality and reduce downtime.
  • The rigid stranding machine adopts a fully digital DC speed control system and a PLC-based intelligent control platform. Measurement data, operating status, alarms, and fault information are displayed through the HMI for convenient monitoring and operation.
